SONICV500R
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

V500RFALCON X

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC V500R gaming case
V500R  ·  FALCON X  ·  FALCON X,  ·  V500R  ·  FALCON X  ·  FALCON X,  ·  V500R  ·  FALCON X  ·  FALCON X,  ·  V500R  ·  FALCON X  ·  FALCON X,  ·  V500R  ·  FALCON X  ·  FALCON X,  ·  V500R  ·  FALCON X  ·  FALCON X,  ·
400MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
165MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The V500R

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the V500R front view
420 mm · WIDTH480 mm · HEIGHT
DEPTH210mm · DEPTH
V500R

ROOM TO
GO BIG.

SONIC V500R
PSU BAY FAN OPTIONTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE V500R

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the V500R apart. Illustrative layers made from the product photo.
V500R chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

V500R whiteV500R black

V500R WHITE

  • Front panel: ABS + tempered glass
  • Case size: 420 × 210 × 480 mm
  • Warranty: 1 year for case
Key features

FALCON X, BUILT FOR SPACE

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.6 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

ABS + tempered glass. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 400 mm, CPU cooler up to 165 mm, 7 PCI slots.

06

PSU BAY FAN OPTION

Room for three optional 120 mm fans in the PSU bay.

V500R · PSU BAY FAN OPTION

THE PSU BAY,
OPENED UP.

Room for three optional 120 mm fans in the PSU bay.

V500R PSU BAY FAN OPTION
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the V500R limits.

ATX BOARDCPU COOLER155 mmlimit 165 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 400 mmPOWER SUPPLY160 mmlimit 160 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
100MM CLEARANCE
MAX 400
CPU COOLER HEIGHTFITS ✓
10MM CLEARANCE
MAX 165
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
0MM CLEARANCE
MAX 160
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE V500R, DRAWN

Infinity RGB fans
Top: 12 cm × 2 (optional)

Chalk sketch of a V500R RGB fan

PSU bay fan option

Chalk sketch of the V500R detail

Front panel: ABS + tempered glass. The SONIC V500R adds tri-side mesh ventilation and RGB fans, built for EATX, ATX, Micro-ATX, mini-ITX boards, with room for graphics cards up to 400 mm.

Glass front panel,
white or black

Chalk sketch of the V500R glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

V500R airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Dense mesh panels for enhanced airflow and heat dissipation, with fan and radiator positions across the chassis. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • Top: 12 cm × 2 (optional)
  • Rear: 12 cm × 1 (included)
  • PSU bay: 12 cm × 3 (optional)
  • M/B side: 12 cm × 2 (optional)
  • Radiator: 120 / 240 / 280 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the V500R. Select a point to see what it supports.

V500R · FRONT VIEW420 × 480 mm
V500R interior
Marker positions are indicative.
01 / 06

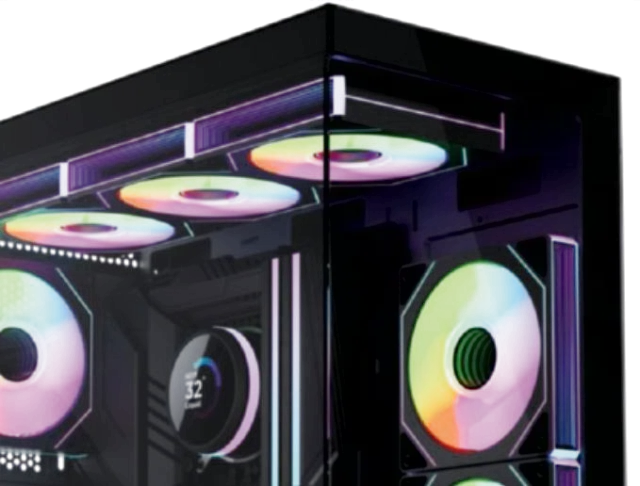

01

Top cooling

Supports up to a 360 mm radiator or triple 120 mm fans.

Radiator120 / 240 / 280 / 360 mm
FansUp to 3 × 120 mm
Technical

SPECIFICATIONS

ModelV500R
Case typeElite Premium compact gaming case, glass front panel
Case size420 × 210 × 480 mm
Chassis size415 × 210 × 465 mm
MaterialSPCC, 0.6 mm
Motherboard supportEATX, ATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 400 mm
CPU cooler supportCPU height up to 165 mm
Fan supportTop 12 cm × 2 (optional) · Rear 12 cm × 1 (included) · PSU bay 12 cm × 3 (optional) · M/B side 12 cm × 2 (optional)
Radiator support120 / 240 / 280 / 360 mm
StorageHDD × 2, SSD × 2
Front I/OUSB 3.0 × 2, HD Audio
PSU supportATX 160 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size535 × 260 × 470 mm
PriceBlack PKR 11,500 · White PKR 12,000

As printed on the SONIC V500R packaging. Packaging lists the chassis (frame) size separately from the overall case size.

V500R White — front view
Downloads

V500R DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
1
1 YEAR

WARRANTY

FOR CASE

BUILD WITHOUT LIMITS.

SONIC V500R · FALCON X.

EXPLORE V500RWHATSAPP US
SONIC V500R
V500RFrom PKR 11,500
