SONIC217R
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

217RSTARVIX

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC 217R gaming case
217R  ·  STARVIX  ·  STARVIX,  ·  217R  ·  STARVIX  ·  STARVIX,  ·  217R  ·  STARVIX  ·  STARVIX,  ·  217R  ·  STARVIX  ·  STARVIX,  ·  217R  ·  STARVIX  ·  STARVIX,  ·  217R  ·  STARVIX  ·  STARVIX,  ·
410MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
170MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The 217R

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the 217R front view
423 mm · WIDTH467 mm · HEIGHT
Chalk sketch of the 217R side view
220 mm · DEPTH
217R

COMPACT FRAME.
FULL PRESENCE.

SONIC 217R
ARGB LIGHT STRIPTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE 217R

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the 217R apart. Illustrative layers made from the product photo.

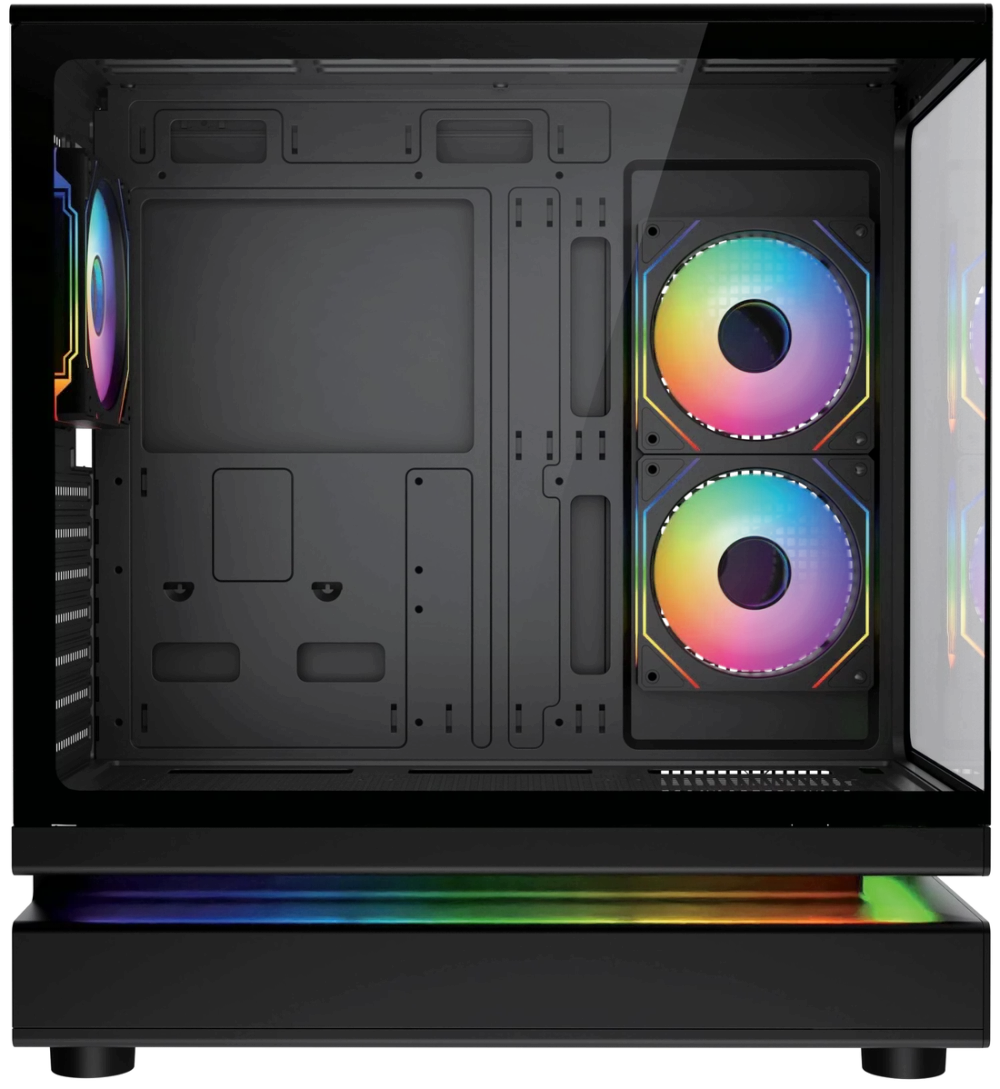

217R chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

217R white217R black

217R WHITE

  • Front panel: Glass, black or white
  • Case size: 423 × 220 × 467 mm
  • Warranty: 1 year for case
Key features

STARVIX, FEATURE BY FEATURE

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.5 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

Glass, black or white. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 410 mm, CPU cooler up to 170 mm, 7 PCI slots.

06

ARGB LIGHT STRIP

Precision-crafted lighting details define tech aesthetics.

217R · ARGB LIGHT STRIP

ARGB ALONG
THE EDGE.

Precision-crafted lighting details define tech aesthetics.

217R ARGB LIGHT STRIP
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the 217R limits.

ATX BOARDCPU COOLER155 mmlimit 170 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 410 mmPOWER SUPPLY160 mmlimit 200 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
110MM CLEARANCE
MAX 410
CPU COOLER HEIGHTFITS ✓
15MM CLEARANCE
MAX 170
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
40MM CLEARANCE
MAX 200
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE 217R, DRAWN

Infinity RGB fans
Bottom: 12 cm × 3

Chalk sketch of a 217R RGB fan

ARGB light strip

Chalk sketch of the 217R detail

Front panel: Glass, black or white. The SONIC 217R adds tri-side mesh ventilation and RGB fans, built for ATX, Micro-ATX and mini-ITX boards, with room for graphics cards up to 410 mm.

Glass front panel,
white or black

Chalk sketch of the 217R glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

217R airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Tri-side ventilation with dense mesh panels, plus fan positions across the bottom, rear, top and motherboard side. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • Bottom: 12 cm × 3
  • Rear: 12 cm × 1
  • Top: 12 cm × 3 / 14 cm × 2
  • M/B side: 12 cm × 2
  • Radiator (top): 240 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the 217R. Select a point to see what it supports.

217R · FRONT VIEW423 × 467 mm
217R interior
Marker positions are indicative.
01 / 06
01

ARGB light strip

Precision-crafted lighting details define tech aesthetics.

LightingARGB light strip
StyleTech aesthetics
Technical

SPECIFICATIONS

Model217R
Case typeElite Premium compact gaming case, glass front panel
Case size423 × 220 × 467 mm
Chassis size420 × 220 × 452 mm
MaterialSPCC, black, 0.5 mm
Motherboard supportATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 410 mm
CPU cooler supportCPU height up to 170 mm
Fan supportBottom 12 cm × 3 · Rear 12 cm × 1 · Top 12 cm × 3 / 14 cm × 2 · M/B side 12 cm × 2
Radiator supportTop: 240 / 360 mm
StorageHDD × 1, SSD × 1
Front I/O1 × USB 3.0 + 1 × USB 1.0 (max qty), HD Audio
PSU supportATX, up to 200 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size510 × 280 × 488 mm
PriceBlack PKR 12,000 · White PKR 12,500

As printed on the SONIC 217R packaging. Packaging lists the chassis (frame) size separately from the overall case size.

217R White — front view
Downloads

217R DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
1
1 YEAR

WARRANTY

FOR CASE

BUILD WITHOUT LIMITS.

SONIC 217R · STARVIX.

EXPLORE 217RWHATSAPP US
SONIC 217R
217RFrom PKR 12,000
WHATSAPP
Ask about 217R
