SONICK10
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

K10FLOW RGB

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC K10 gaming case
K10  ·  FLOW RGB  ·  LIGHT IN  ·  K10  ·  FLOW RGB  ·  LIGHT IN  ·  K10  ·  FLOW RGB  ·  LIGHT IN  ·  K10  ·  FLOW RGB  ·  LIGHT IN  ·  K10  ·  FLOW RGB  ·  LIGHT IN  ·  K10  ·  FLOW RGB  ·  LIGHT IN  ·
390MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
165MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The K10

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the K10 front view
458 mm · WIDTH486 mm · HEIGHT
DEPTH215mm · DEPTH
K10

FLOW RGB.
FULL VIEW.

SONIC K10
FLOW RGBTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE K10

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the K10 apart. Illustrative layers made from the product photo.
K10 chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

K10 whiteK10 black

K10 WHITE

  • Front panel: Tempered glass
  • Case size: 458 × 215 × 486 mm
  • Warranty: 1 year for case
Key features

LIGHT IN MOTION

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.6 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

Tempered glass. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 390 mm, CPU cooler up to 165 mm, 7 PCI slots.

06

FLOW RGB

Flow RGB lighting with a panoramic glass view and EATX motherboard support.

K10 · FLOW RGB

FLOW RGB,
ALL AROUND.

Flow RGB lighting with a panoramic glass view and EATX motherboard support.

K10 FLOW RGB
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the K10 limits.

ATX BOARDCPU COOLER155 mmlimit 165 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 390 mmPOWER SUPPLY160 mmlimit 220 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
90MM CLEARANCE
MAX 390
CPU COOLER HEIGHTFITS ✓
10MM CLEARANCE
MAX 165
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
60MM CLEARANCE
MAX 220
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE K10, SKETCHED

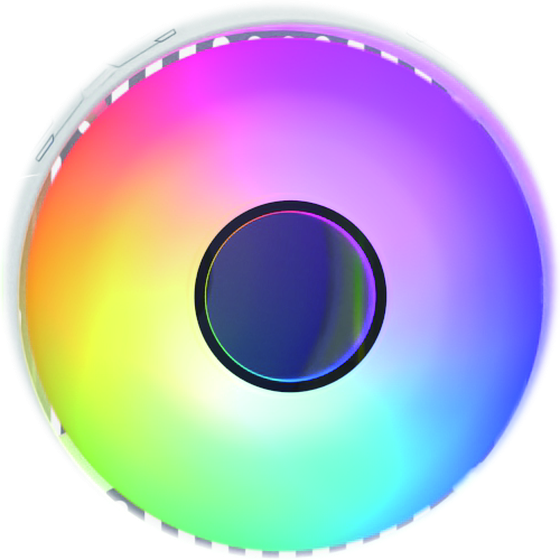

Infinity RGB fans
M/B side: 12 cm × 2 (included)

Chalk sketch of a K10 RGB fan

Flow RGB

Chalk sketch of the K10 detail

Front panel: Tempered glass. The SONIC K10 adds tri-side mesh ventilation and RGB fans, built for EATX, ATX, Micro-ATX, mini-ITX boards, with room for graphics cards up to 390 mm.

Glass front panel,
white or black

Chalk sketch of the K10 glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

K10 airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Dense mesh panels for enhanced airflow and heat dissipation, with fan and radiator positions across the chassis. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • M/B side: 12 cm × 2 (included)
  • Top: 12 cm × 3 or 14 cm × 2 (optional)
  • Rear: 12 cm × 1 (included)
  • Radiator: 120 / 240 / 280 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the K10. Select a point to see what it supports.

K10 · FRONT VIEW458 × 486 mm
K10 interior
Marker positions are indicative.
01 / 06
01

Top cooling

Supports up to a 360 mm radiator or triple 120 mm fans.

Radiator120 / 240 / 280 / 360 mm
FansUp to 3 × 120 mm
Technical

SPECIFICATIONS

ModelK10
Case typeElite Premium compact gaming case, glass front panel
Case size458 × 215 × 486 mm
Chassis size420 × 215 × 470 mm
MaterialSPCC, 0.6 mm
Motherboard supportEATX, ATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 390 mm
CPU cooler supportCPU height up to 165 mm
Fan supportM/B side 12 cm × 2 (included) · Top 12 cm × 3 or 14 cm × 2 (optional) · Rear 12 cm × 1 (included)
Radiator support120 / 240 / 280 / 360 mm
StorageHDD × 2, SSD × 2
Front I/OUSB 3.0 × 1, USB 2.0 × 2, HD Audio
PSU supportATX 220 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size530 × 272 × 490 mm
PriceBlack PKR 11,500 · White PKR 12,000

As printed on the SONIC K10 packaging. Packaging lists the chassis (frame) size separately from the overall case size.

K10 White — three-quarter view
Downloads

K10 DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
1
1 YEAR

WARRANTY

FOR CASE

BUILD WITHOUT LIMITS.

SONIC K10 · FLOW RGB.

EXPLORE K10WHATSAPP US
SONIC K10
K10From PKR 11,500
WHATSAPP
Ask about K10
