SONICV200R
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

V200RSHADOW CORE

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC V200R gaming case
V200R  ·  SHADOW CORE  ·  THE CASE  ·  V200R  ·  SHADOW CORE  ·  THE CASE  ·  V200R  ·  SHADOW CORE  ·  THE CASE  ·  V200R  ·  SHADOW CORE  ·  THE CASE  ·  V200R  ·  SHADOW CORE  ·  THE CASE  ·  V200R  ·  SHADOW CORE  ·  THE CASE  ·
400MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
157MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The V200R

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

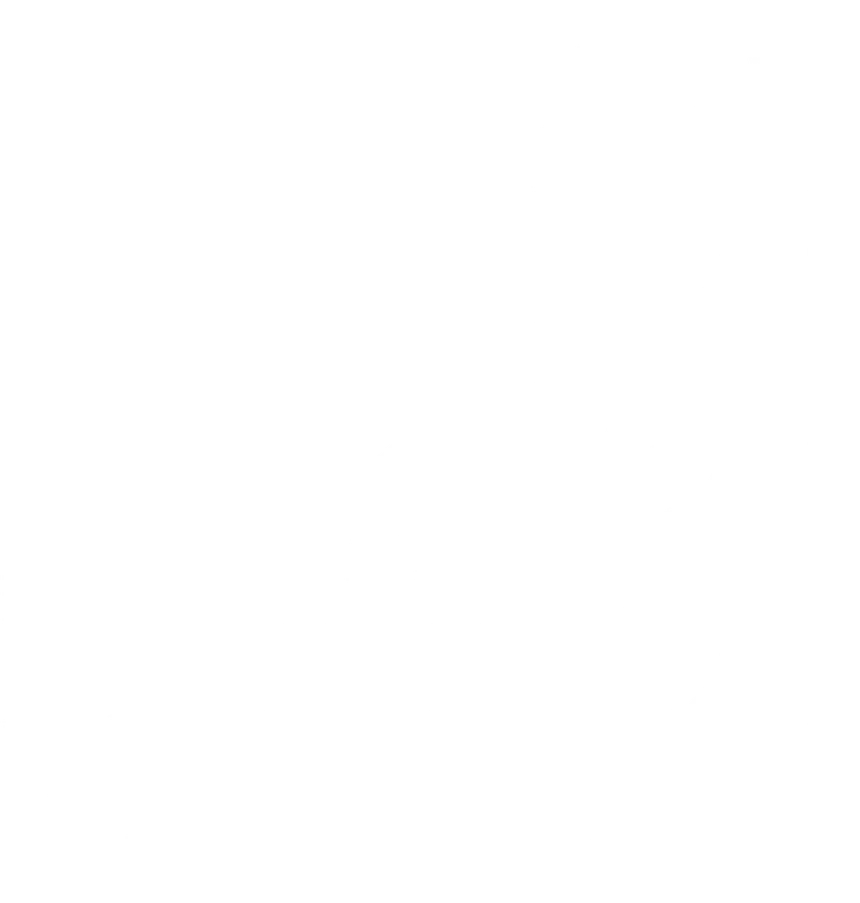

Chalk sketch of the V200R front view
418 mm · WIDTH440 mm · HEIGHT

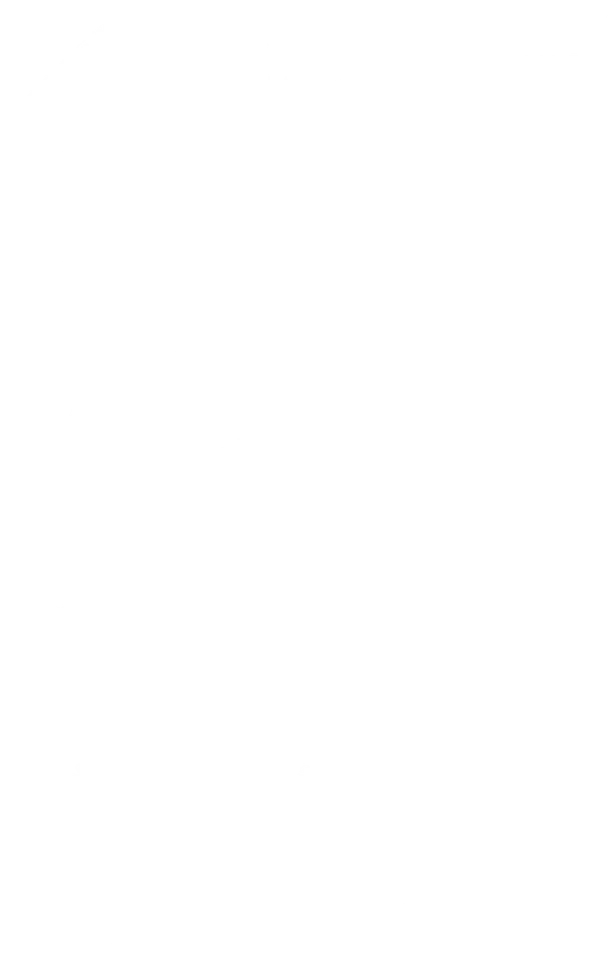

Chalk sketch of the V200R side view
277 mm · DEPTH
V200R

THE FLAGSHIP.
SEEN INSIDE OUT.

SONIC V200R
9.16" LCD DISPLAYTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE V200R

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the V200R apart. Illustrative layers made from the product photo.

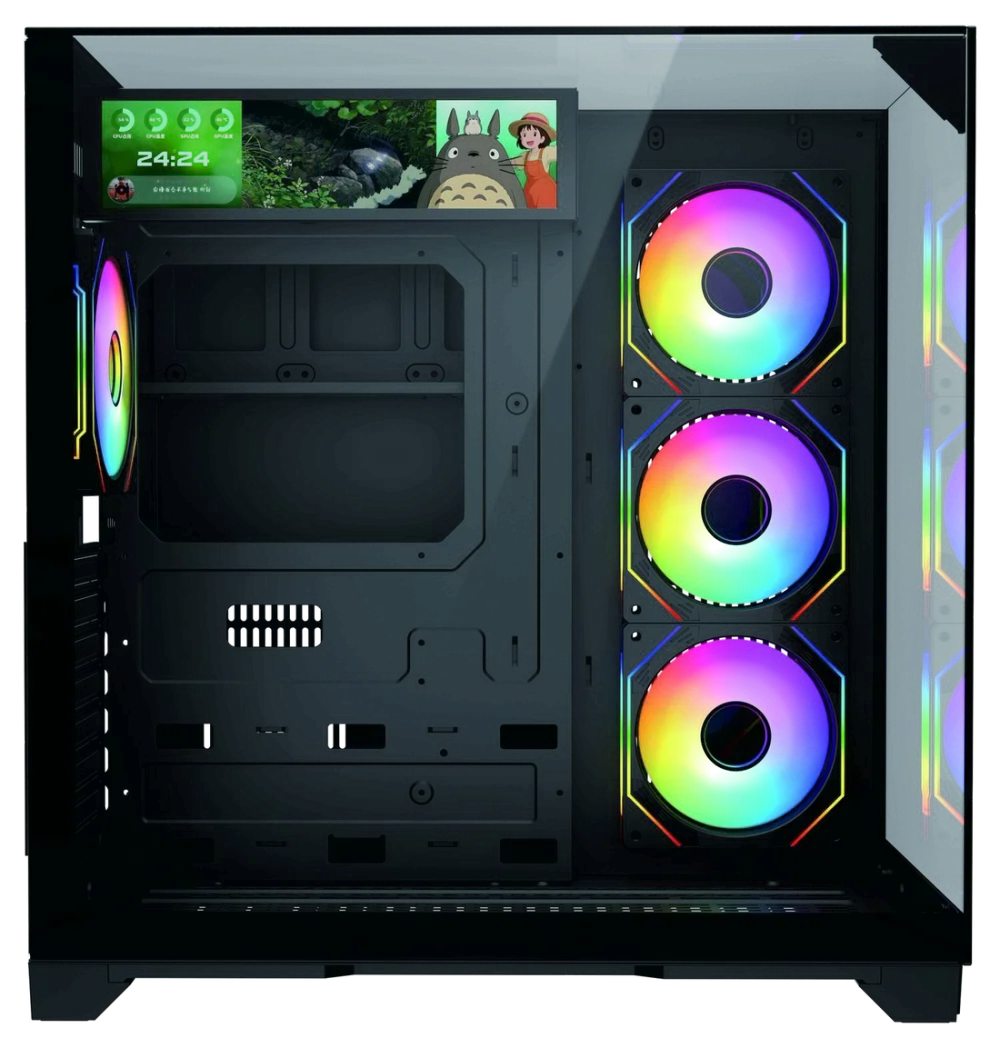

V200R chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

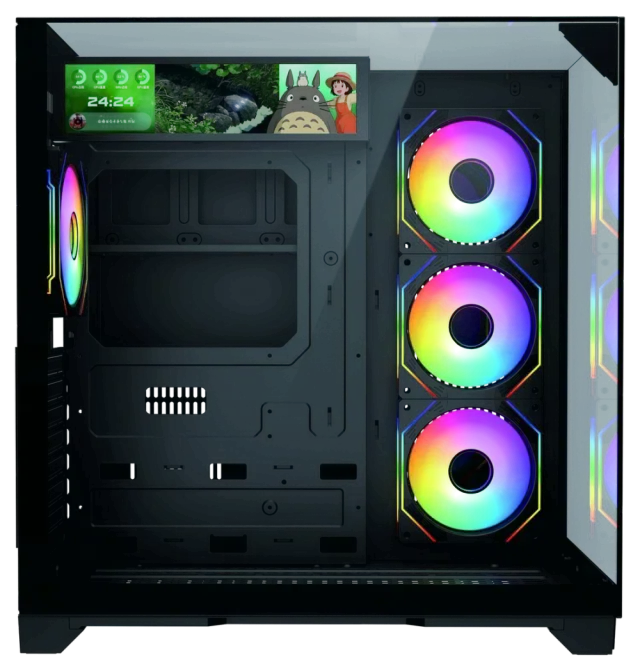

V200R whiteV200R black

V200R WHITE

  • Front panel: Glass, black or white
  • Case size: 418 × 277 × 440 mm
  • Warranty: 1 year for case
Key features

THE CASE AROUND YOUR BUILD

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.5 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

Glass, black or white. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 400 mm, CPU cooler up to 157 mm, 7 PCI slots.

06

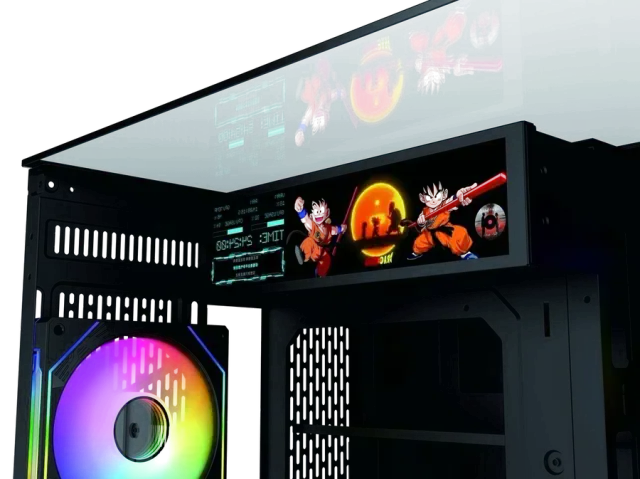

9.16" LCD SCREEN

Customizable themes for a clear view of CPU and GPU temperatures.

V200R · 9.16" LCD DISPLAY

YOUR TEMPERATURES,
ON DISPLAY.

Customizable themes for a clear view of CPU and GPU temperatures.

CPU46°
GPU52°
OCEANNEONMONO
Illustrative theme preview
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the V200R limits.

ATX BOARDCPU COOLER155 mmlimit 157 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 400 mmPOWER SUPPLY160 mmlimit 200 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
100MM CLEARANCE
MAX 400
CPU COOLER HEIGHTFITS ✓
2MM CLEARANCE
MAX 157
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
40MM CLEARANCE
MAX 200
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE V200R, SKETCHED

Infinity RGB fans
Bottom: 12 cm × 3

Chalk sketch of a V200R RGB fan

9.16" LCD screen

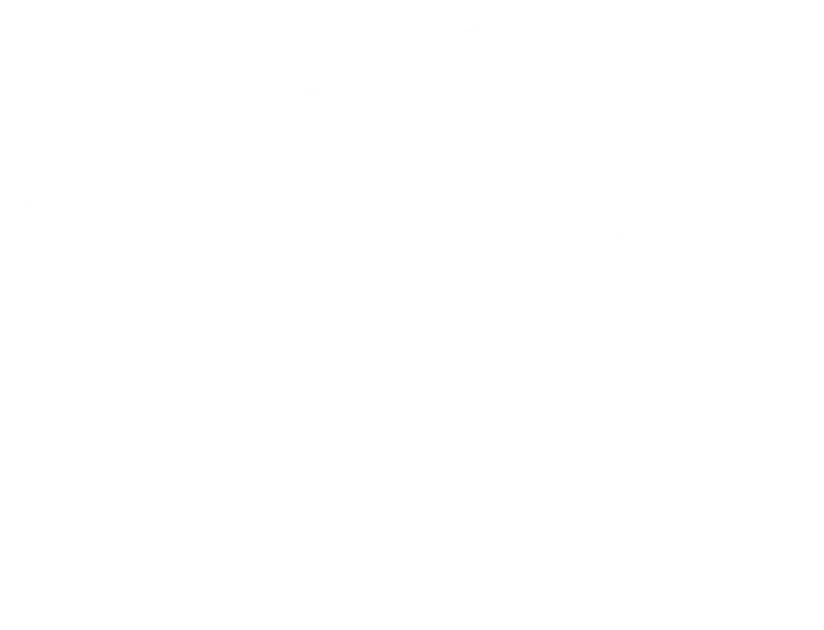

Chalk sketch of the V200R detail

Front panel: Glass, black or white. The SONIC V200R adds tri-side mesh ventilation and RGB fans, built for ATX, Micro-ATX and mini-ITX boards, with room for graphics cards up to 400 mm.

Glass front panel,
white or black

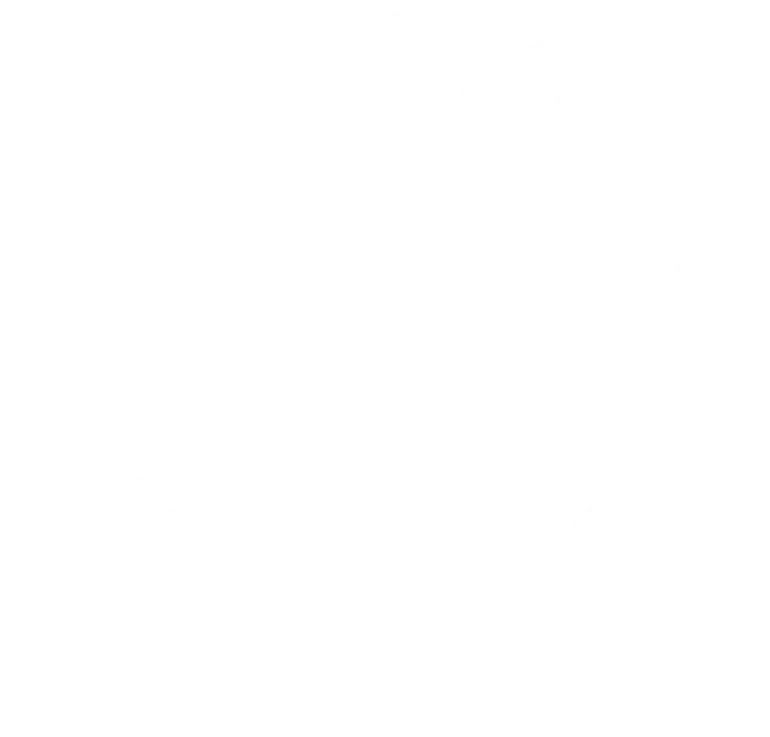

Chalk sketch of the V200R glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

V200R airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Tri-side ventilation with dense mesh panels, plus fan positions across the bottom, rear and motherboard side. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • Bottom: 12 cm × 3
  • Rear: 12 cm × 1
  • M/B side: 12 cm × 3
  • Radiator (M/B): 240 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the V200R. Select a point to see what it supports.

V200R · FRONT VIEW418 × 440 mm
V200R interior
Marker positions are indicative.
01 / 06
01

9.16" LCD display

Customizable themes for a clear view of CPU and GPU temperatures.

Display9.16" LCD screen
FunctionCustomizable themes
ShowsCPU & GPU temperatures
Technical

SPECIFICATIONS

ModelV200R
Case typeElite Premium compact gaming case, glass front panel
Case size418 × 277 × 440 mm
Chassis size412 × 277 × 414.5 mm
MaterialSPCC, black, 0.5 mm
Motherboard supportATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 400 mm
CPU cooler supportCPU height up to 157 mm
Fan supportBottom 12 cm × 3 · Rear 12 cm × 1 · M/B side 12 cm × 3
Radiator supportM/B side: 240 / 360 mm
StorageHDD × 2, SSD × 3
Front I/O1 × USB 3.0 + 2 × USB 1.0 (as printed), HD Audio, Reset
PSU supportATX, up to 200 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size495 × 370 × 535 mm
PriceBlack PKR 29,000 · White PKR 29,500

As printed on the SONIC V200R packaging. Packaging lists the chassis (frame) size separately from the overall case size.

V200R White — front view
Downloads

V200R DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
1
1 YEAR

WARRANTY

FOR CASE

BUILD WITHOUT LIMITS.

SONIC V200R · SHADOW CORE.

EXPLORE V200RWHATSAPP US
SONIC V200R
V200RFrom PKR 29,000
