SONICV100R
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

V100RVECTOR

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC V100R gaming case
V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·  V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·  V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·  V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·  V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·  V100R  ·  VECTOR  ·  VECTOR ENGINEERING,  ·
420MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
185MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The V100R

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the V100R front view
434 mm · WIDTH460 mm · HEIGHT
Chalk sketch of the V100R side view
245 mm · DEPTH
V100R

SHARP LINES.
CLEAN LIGHT.

SONIC V100R
ARGB LIGHT STRIPTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE V100R

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.

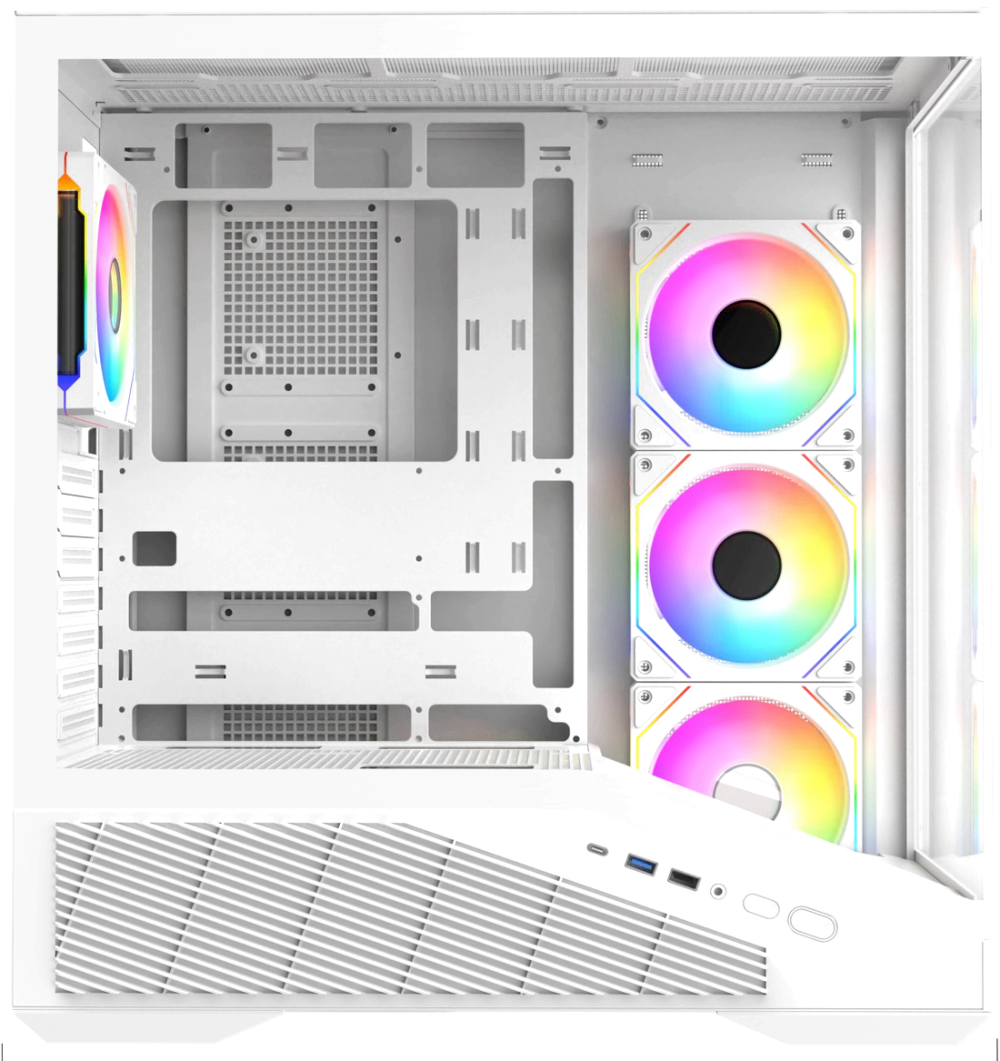

  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the V100R apart. Illustrative layers made from the product photo.

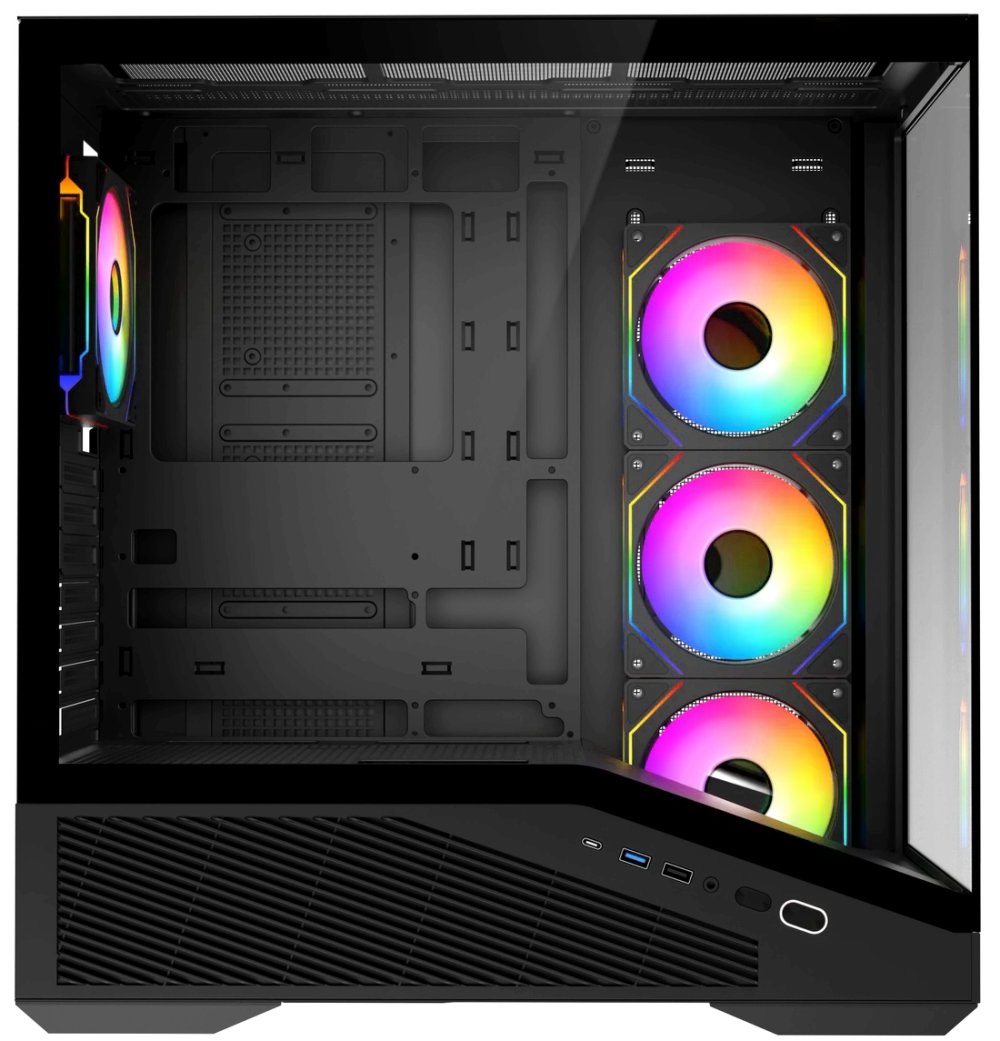

V100R chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

V100R whiteV100R black

V100R WHITE

  • Front panel: Glass, black or white
  • Case size: 434 × 245 × 460 mm
  • Warranty: 1 year for case
Key features

VECTOR ENGINEERING, FEATURE BY FEATURE

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.7 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

Glass, black or white. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 420 mm, CPU cooler up to 185 mm, 7 PCI slots.

06

ARGB LIGHT STRIP

Precision-crafted lighting details define tech aesthetics.

V100R · ARGB LIGHT STRIP

ONE LINE OF
ARGB LIGHT.

Precision-crafted lighting details define tech aesthetics.

V100R ARGB LIGHT STRIP
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the V100R limits.

ATX BOARDCPU COOLER155 mmlimit 185 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 420 mmPOWER SUPPLY160 mmlimit 200 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
120MM CLEARANCE
MAX 420
CPU COOLER HEIGHTFITS ✓
30MM CLEARANCE
MAX 185
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
40MM CLEARANCE
MAX 200
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE V100R, DRAWN

Infinity RGB fans
Bottom: 12 cm × 3

Chalk sketch of a V100R RGB fan

ARGB light strip

Chalk sketch of the V100R detail

Front panel: Glass, black or white. The SONIC V100R adds tri-side mesh ventilation and RGB fans, built for ATX, Micro-ATX and mini-ITX boards, with room for graphics cards up to 420 mm.

Glass front panel,
white or black

Chalk sketch of the V100R glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

V100R airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Tri-side ventilation with dense mesh panels, plus fan positions across the bottom, rear, top and motherboard side. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • Bottom: 12 cm × 3
  • Rear: 12 cm × 1 / 14 cm × 1
  • Top: 12 cm × 3 / 14 cm × 2
  • M/B side: 12 cm × 3
  • Radiator (top): 240 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the V100R. Select a point to see what it supports.

V100R · FRONT VIEW434 × 460 mm
V100R interior
Marker positions are indicative.
01 / 06
01

ARGB light strip

Precision-crafted lighting details define tech aesthetics.

LightingARGB light strip
StyleTech aesthetics
Technical

SPECIFICATIONS

ModelV100R
Case typeElite Premium compact gaming case, glass front panel
Case size434 × 245 × 460 mm
Chassis size430 × 245 × 445 mm
MaterialSPCC, black, 0.7 mm
Motherboard supportATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 420 mm
CPU cooler supportCPU height up to 185 mm
Fan supportBottom 12 cm × 3 · Rear 12 cm × 1 / 14 cm × 1 · Top 12 cm × 3 / 14 cm × 2 · M/B side 12 cm × 3
Radiator supportTop: 240 / 360 mm
StorageHDD × 3 or SSD × 3
Front I/O1 × USB 3.0 + 1 × USB 1.0 + 1 × Type-C (max qty), HD Audio
PSU supportATX, up to 200 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size515 × 316 × 525 mm
PriceBlack PKR 18,000 · White PKR 18,500

As printed on the SONIC V100R packaging. Packaging lists the chassis (frame) size separately from the overall case size.

V100R White — front view
Downloads

V100R DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
