SONICH7
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

H7PERFORMANCE GAMING

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY

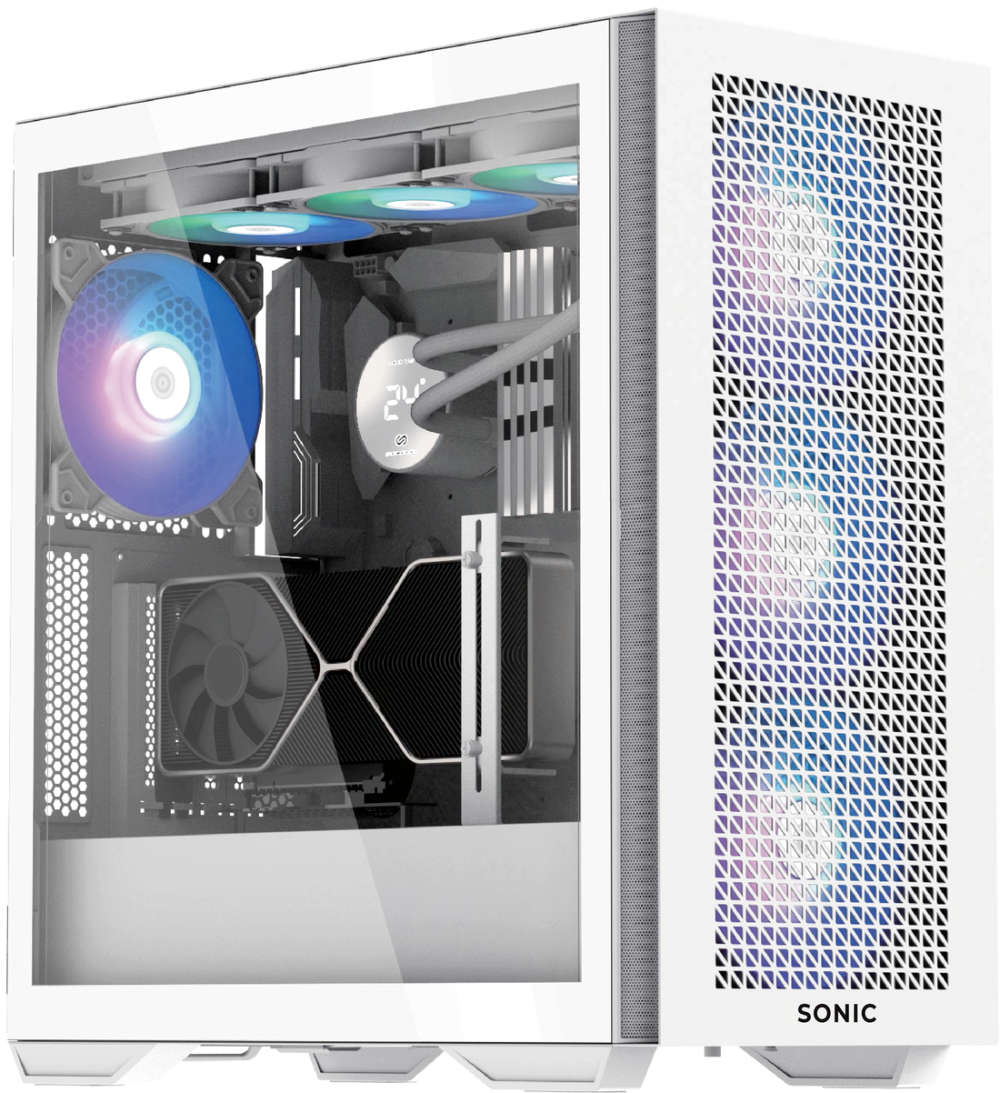

SONIC H7 gaming case
H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·  H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·  H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·  H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·  H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·  H7  ·  PERFORMANCE GAMING  ·  BUILT FOR  ·
400MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
175MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The H7

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the H7 front view
470 mm · WIDTH490 mm · HEIGHT
DEPTH230mm · DEPTH
H7

OPEN MESH.
OPEN AIRFLOW.

SONIC H7
FRONT RADIATOR 420 MMFRONT: ABS, BLACK OR WHITETRI-SIDE VENTILATION
INSIDE THE H7

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the H7 apart. Illustrative layers made from the product photo.

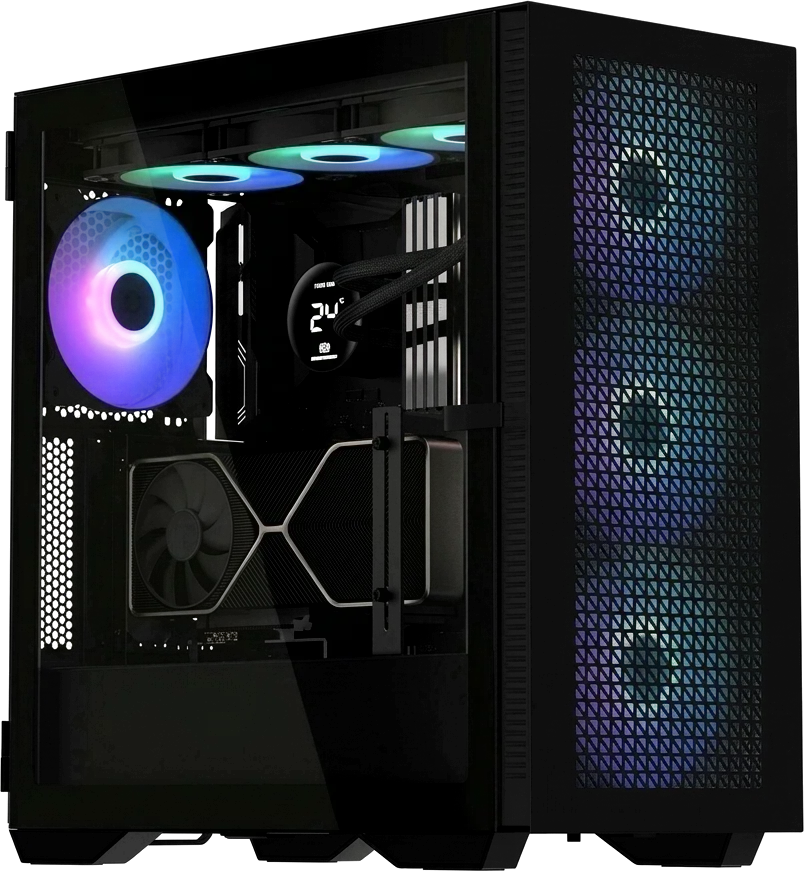

H7 chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

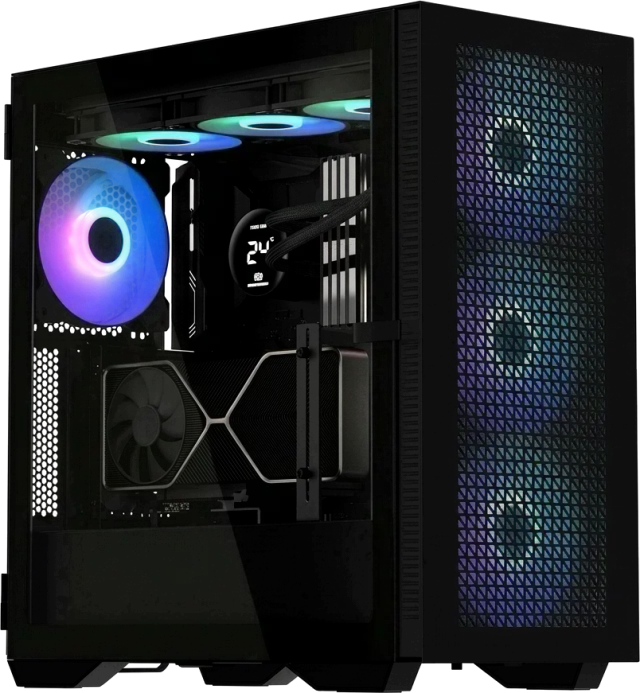

H7 whiteH7 black

H7 WHITE

  • Front panel: ABS, black or white
  • Case size: 470 × 230 × 490 mm
  • Warranty: 1 year for case
Key features

BUILT FOR BIG COOLING

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.6–0.7 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

FRONT PANEL

ABS, black or white.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 400 mm, CPU cooler up to 175 mm, 7 PCI slots.

06

FRONT RADIATOR 420 MM

Front radiator support up to 420 mm, top radiator up to 360 mm.

H7 · FRONT RADIATOR 420 MM

A 420 MM RADIATOR
UP FRONT.

Front radiator support up to 420 mm, top radiator up to 360 mm.

H7 FRONT RADIATOR 420 MM
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the H7 limits.

ATX BOARDCPU COOLER155 mmlimit 175 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 400 mmPOWER SUPPLY160 mmlimit 210 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
100MM CLEARANCE
MAX 400
CPU COOLER HEIGHTFITS ✓
20MM CLEARANCE
MAX 175
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
50MM CLEARANCE
MAX 210
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE H7, DRAWN

Infinity RGB fans
Front: 12 cm × 3 / 14 cm × 3

Chalk sketch of a H7 RGB fan

Front radiator 420 mm

Chalk sketch of the H7 detail

Front panel: ABS, black or white. The SONIC H7 adds tri-side mesh ventilation and RGB fans, built for EATX, ATX, Micro-ATX, mini-ITX boards, with room for graphics cards up to 400 mm.

Front panel: ABS,
white or black

Chalk sketch of the H7 glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

H7 airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Dense mesh panels for enhanced airflow and heat dissipation, with fan and radiator positions across the chassis. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • Front: 12 cm × 3 / 14 cm × 3
  • Rear: 12 cm × 1 / 14 cm × 1
  • Top: 12 cm × 3 / 14 cm × 2
  • Radiator: 240 / 280 / 360 mm · Front: 240 / 280 / 360 / 420 mm · Rear: 120 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the H7. Select a point to see what it supports.

H7 · FRONT VIEW470 × 490 mm
H7 interior
Marker positions are indicative.
01 / 06
01

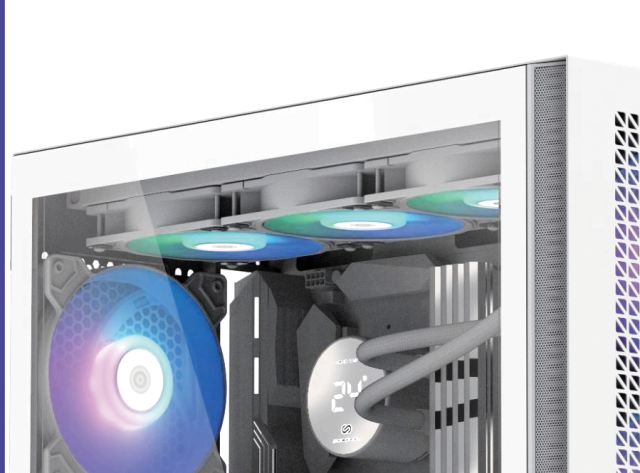

Top cooling

Supports up to a 360 mm radiator or triple 120 mm fans.

RadiatorTop: 240 / 280 / 360 mm · Front: 240 / 280 / 360 / 420 mm · Rear: 120 mm
FansUp to 3 × 120 mm
Technical

SPECIFICATIONS

ModelH7
Case typeElite Premium compact gaming case, ABS, black or white front panel
Case size470 × 230 × 490 mm
Chassis size430 × 230 × 470 mm
MaterialSPCC, black, 0.6–0.7 mm
Motherboard supportEATX, ATX, Micro-ATX, mini-ITX
GPU supportVGA length up to 400 mm
CPU cooler supportCPU height up to 175 mm
Fan supportFront 12 cm × 3 / 14 cm × 3 · Rear 12 cm × 1 / 14 cm × 1 · Top 12 cm × 3 / 14 cm × 2
Radiator supportTop: 240 / 280 / 360 mm · Front: 240 / 280 / 360 / 420 mm · Rear: 120 mm
StorageHDD × 2, SSD × 2
Front I/O1 × USB 3.0 + 2 × USB 2.0 + 1 × Type-C (max qty)
PSU supportATX 210 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size555 × 291 × 535 mm
PriceBlack PKR 17,000 · White PKR 17,500

As printed on the SONIC H7 packaging. Packaging lists the chassis (frame) size separately from the overall case size.

H7 White — front view
Downloads

H7 DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
