SONICF301
DESIGNED TO DOMINATE. BUILT TO WIN.
SONIC | ELITE PREMIUM GAMING

F301PERFORMANCE GAMING

DESIGNED TO DOMINATE.
BUILT TO WIN.

A premium gaming chassis engineered for powerful hardware, immersive cooling, and a clean modern build.

VIEW SPECIFICATIONS
CONTACT FOR AVAILABILITY
SONIC F301 gaming case
F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·  F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·  F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·  F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·  F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·  F301  ·  PERFORMANCE GAMING  ·  A FULL VIEW,  ·
425MM MAX GPU LENGTH
360MM RADIATOR SUPPORT
180MM MAX CPU COOLER
7PCI EXPANSION SLOTS
The F301

A PREMIUM GAMING CHASSIS ENGINEERED FOR POWERFUL HARDWARE, IMMERSIVE COOLING, AND A CLEAN MODERN BUILD.

Technical

PRECISION IN EVERY DIMENSION

Designed to deliver impressive hardware compatibility while maintaining a refined gaming footprint.

Chalk sketch of the F301 front view
485 mm · WIDTH460 mm · HEIGHT
DEPTH238mm · DEPTH
F301

PANORAMIC.
UNINTERRUPTED.

SONIC F301
PANORAMIC GLASSTEMPERED GLASSTRI-SIDE VENTILATION
INSIDE THE F301

EXPLODED VIEW

  1. 01TEMPERED GLASSThe glass panel lifts away to reveal the build.
  2. 02FAN WALLThe side-mounted fans slide out as a unit.
  3. 03POWER BAYThe power supply sits in its own shroud at the base.
  4. 04CHASSISMotherboard, GPU and radiator space stay in the frame.
Scroll to pull the F301 apart. Illustrative layers made from the product photo.

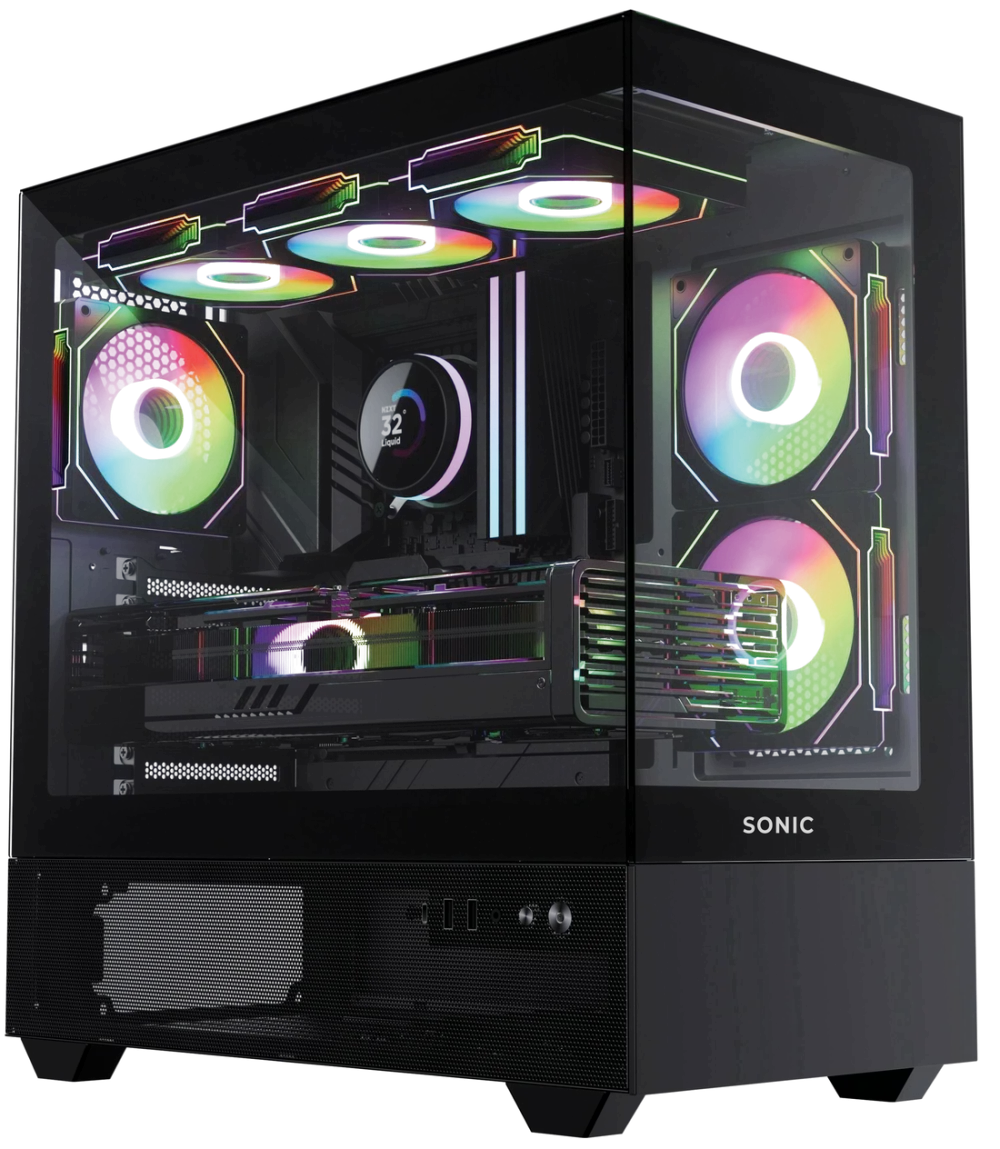

F301 chassis
GLASSFANSPSU
Choose your style

CHOOSE YOUR STYLE

F301 whiteF301 black

F301 WHITE

  • Front panel: Tempered glass
  • Case size: 485 × 238 × 460 mm
  • Warranty: 1 year for case
Key features

A FULL VIEW, BUILT TO PERFORM

01

PREMIUM DESIGN

Clean gaming-focused chassis with a refined modern look, in SPCC steel (0.6–0.7 mm).

02

IMMERSIVE RGB

Rainbow RGB fans on display through the glass.

03

TEMPERED GLASS

Tempered glass. Packaging notes: handle with care.

04

TRI-SIDE VENTILATION

Dense mesh panels for enhanced airflow and superior heat dissipation.

05

HARDWARE COMPATIBILITY

ATX, Micro-ATX, mini-ITX. GPU up to 425 mm, CPU cooler up to 180 mm, 7 PCI slots.

06

PANORAMIC GLASS

Seamless tempered glass with a front Type-C port.

F301 · PANORAMIC GLASS

ONE PIECE OF
GLASS.

Seamless tempered glass with a front Type-C port.

F301 PANORAMIC GLASS
Will it fit?

SEE YOUR BUILD INSIDE

Pick your parts and see how they sit against the F301 limits.

ATX BOARDCPU COOLER155 mmlimit 180 mmRADIATOR240 mmlimit 360 mmGRAPHICS CARD300 mmlimit 425 mmPOWER SUPPLY160 mmlimit 200 mm
THIS BUILD FITS
GRAPHICS CARDFITS ✓
125MM CLEARANCE
MAX 425
CPU COOLER HEIGHTFITS ✓
25MM CLEARANCE
MAX 180
RADIATORFITS ✓
120MM CLEARANCE
MAX 360
POWER SUPPLY LENGTHFITS ✓
40MM CLEARANCE
MAX 200
MOTHERBOARDSUPPORTED
Typical sizes shown for illustration. Check your exact parts against the specifications.
Design notes

THE F301, SKETCHED

Infinity RGB fans
M/B side: 12 cm × 2 (included)

Chalk sketch of a F301 RGB fan

Panoramic glass

Chalk sketch of the F301 detail

Front panel: Tempered glass. The SONIC F301 adds tri-side mesh ventilation and RGB fans, built for EATX, ATX, Micro-ATX, ITX boards, with room for graphics cards up to 425 mm.

Glass front panel,
white or black

Chalk sketch of the F301 glass panel and mesh ventilation

Tri-side ventilation,
dense mesh panels

Cooling

ENGINEERED FOR AIRFLOW

F301 airflowCOOL AIR INCOMPONENTSHOT AIR OUT

Dense mesh panels for enhanced airflow and heat dissipation, with fan and radiator positions across the chassis. Flow lines are illustrative.

COOL AIR IN→COMPONENTS→HOT AIR OUT
  • M/B side: 12 cm × 2 (included)
  • Top: 12 cm × 3 (optional)
  • Rear: 12 cm × 1 (included)
  • Radiator: 120 / 240 / 280 / 360 mm
Inside the chassis

INTERNAL LAYOUT

Six key points inside the F301. Select a point to see what it supports.

F301 · FRONT VIEW485 × 460 mm
F301 interior
Marker positions are indicative.
01 / 06
01

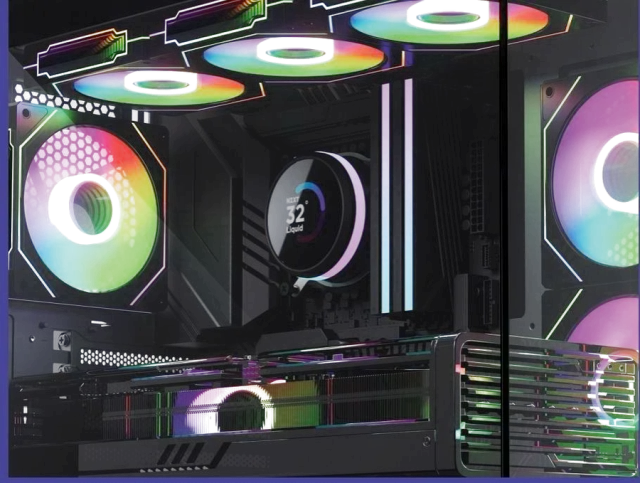

Top cooling

Supports up to a 360 mm radiator or triple 120 mm fans.

Radiator120 / 240 / 280 / 360 mm
FansUp to 3 × 120 mm
Technical

SPECIFICATIONS

ModelF301
Case typeElite Premium compact gaming case, glass front panel
Case size485 × 238 × 460 mm
Chassis size445 × 238 × 450 mm
MaterialSPCC, black, 0.6–0.7 mm
Motherboard supportEATX, ATX, Micro-ATX, ITX
GPU supportVGA length up to 425 mm
CPU cooler supportCPU height up to 180 mm
Fan supportM/B side 12 cm × 2 (included) · Top 12 cm × 3 (optional) · Rear 12 cm × 1 (included)
Radiator support120 / 240 / 280 / 360 mm
StorageHDD × 2, SSD × 2
Front I/OUSB 3.0 × 1, USB 2.0 × 2, Type-C × 1, HD Audio
PSU supportATX 200 mm
Expansion slots7 PCI
Motherboard standoffsATX, 6 pcs (copper)
Package size518 × 300 × 514 mm
PriceBlack PKR 14,000 · White PKR 14,500

As printed on the SONIC F301 packaging. Packaging lists the chassis (frame) size separately from the overall case size.

F301 White — front view
Downloads

F301 DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →
—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
