DESIGNED TO DOMINATE. BUILT TO WIN.

PRIME 700W

OVERVIEW COOLING CERTIFIED CONNECTORS POWER SKETCHES SPECIFICATIONS

SONIC | POWER SUPPLY UNIT

PRIME700W

Name: SONIC PRIME 700W 700W power supply
Brand: SONIC

80 PLUS BRONZE · FULLY MODULAR

LLC resonant + DC-DC design, a near-silent 12 cm fan and premium 105°C capacitors, built to feed a serious gaming rig.

VIEW POWER SPECS CABLE SET

PRICEPKR 9,000

700W80+ BRONZE12 CM FANMODULAR SONIC PRIME 700W

700WTOTAL OUTPUT

85%+EFFICIENCY

120MMHIGH-PRESSURE FAN

105°CPREMIUM CAPACITORS

PRIME 700W in detail

EVERY WATT. EVERY CABLE.

12 CM FANHigh-pressure fan with optimized speed for near inaudible noise.

105°C CAPACITORSPremium main capacitors for low ripple and higher durability.

FULLY MODULARConnect only the cables you need for a cleaner, cooler build.

80 PLUS BRONZEEfficiency up to 85%+ with LLC resonant + DC-DC design.

Cooling & acoustics

12 CM. NEAR SILENT.

A 12 cm high-pressure fan with optimized fan speed allows near inaudible fan noise, with silent PSU operation.

12 cm high-pressure fan
Optimized fan speed curve

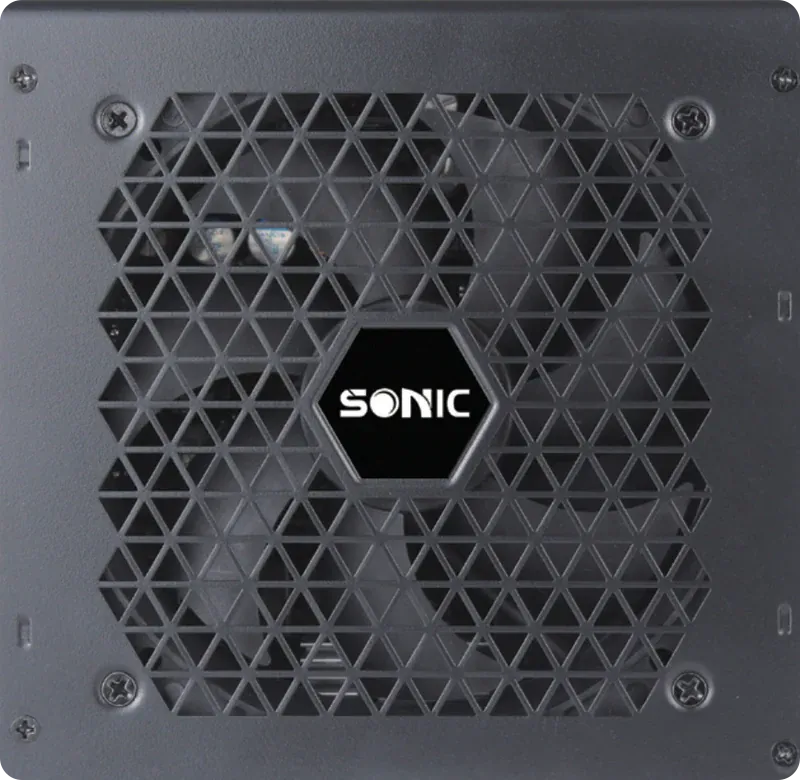

Hex-mesh grille for open airflow
Fully modular cables for improved air flow

Certified

EFFICIENT. CERTIFIED.

85% max efficiency, 80 PLUS Bronze, active PFC and RoHS compliance, with silent-noise operation.

85% MAX EFFICIENCY

RoHS

SILENT NOISE

PFC ACTIVE

80 PLUS BRONZE

OVPOver Voltage

UVPUnder Voltage

OPPOver Power

SCPShort Circuit

OCPOver Current

Best-in-class protections make the PSU highly resistant to damage.

How it works

FROM THE WALL TO YOUR BUILD

STAGE 01200V–240V

Mains power enters the unit. Voltage (AC): 200V–240V · Current: 10A · Frequency: 50–60Hz.

Cable set

FULLY MODULAR

Plug in only the cables you need for efficient cable management and improved airflow.

20+4Pin Motherboard

Connector × 1

[4+4]Pin CPU +12V

Connector × 1

4Pin Peripheral

Connector × 2

SATA

Connector × 6

VGA PCI 6+2 PIN

Connector × 2

Cable set

WHAT PLUGS WHERE

PRIME 700W

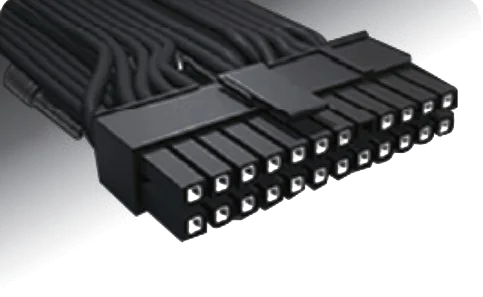

20+4 pin · × 120+4Pin Motherboard

The main power cable. It splits 20+4 so it fits both older and current boards.

Power delivery

700W OF CLEAN POWER

VOLTAGE (AC)200V–240V

CURRENT10A

FREQUENCY50–60Hz

Protections: OVP · UVP · OPP · SCP · OCP
Efficiency: up to 85%+ (80 PLUS Bronze)
Fan: 12 cm high-pressure

+12V

58A · 650W

+5V

20A · 100W (combined with +3.3V)

+3.3V

20A · 100W (combined with +5V)

-12V

0.3A · 3.6W

+5VSB

2.5A · 12.5W

Key features

BUILT TO LAST

LLC resonant + DC-DC circuit design for higher efficiency

12 cm high-pressure fan with optimized fan speed for near inaudible noise

Premium 105°C main capacitors for low ripple and higher durability

Efficiency up to 85%+ with 80 PLUS Bronze certification

Fully modular design for efficient cable management and improved airflow

Design notes

THE PRIME 700W, SKETCHED

Chalk sketch of the PRIME 700W fan grille

Chalk sketch of the PRIME 700W power supply

Chalk sketch of the PRIME 700W VGA PCI connector

Technical

SPECIFICATIONS

ModelSONIC E700

SeriesPRIME 700W

Certification80 PLUS Bronze

Total output700W

AC input — Voltage (AC)200V–240V

AC input — Current10A

AC input — Frequency50–60Hz

+12V rail58A max · 650W

+5V rail20A max · 100W (combined with +3.3V)

+3.3V rail20A max · 100W (combined with +5V)

-12V rail0.3A max · 3.6W

+5VSB rail2.5A max · 12.5W

Cable set20+4Pin Motherboard × 1 · [4+4]Pin CPU +12V × 1 · 4Pin Peripheral × 2 · SATA × 6 · VGA PCI 6+2 PIN × 2

PricePKR 9,000

Box size270 × 170 × 95 mm

As printed on the SONIC PRIME 700W packaging.

Downloads

PRIME 700W DOCUMENTS

PDFSpecification sheetPrintable. Open it, then print or save as PDF.OPEN →

—Manual & guidesAvailable on request. Ask SONIC on WhatsApp.
